This new
generation power supply combines the technology all in one
for the full compatibility of old and new main boards and

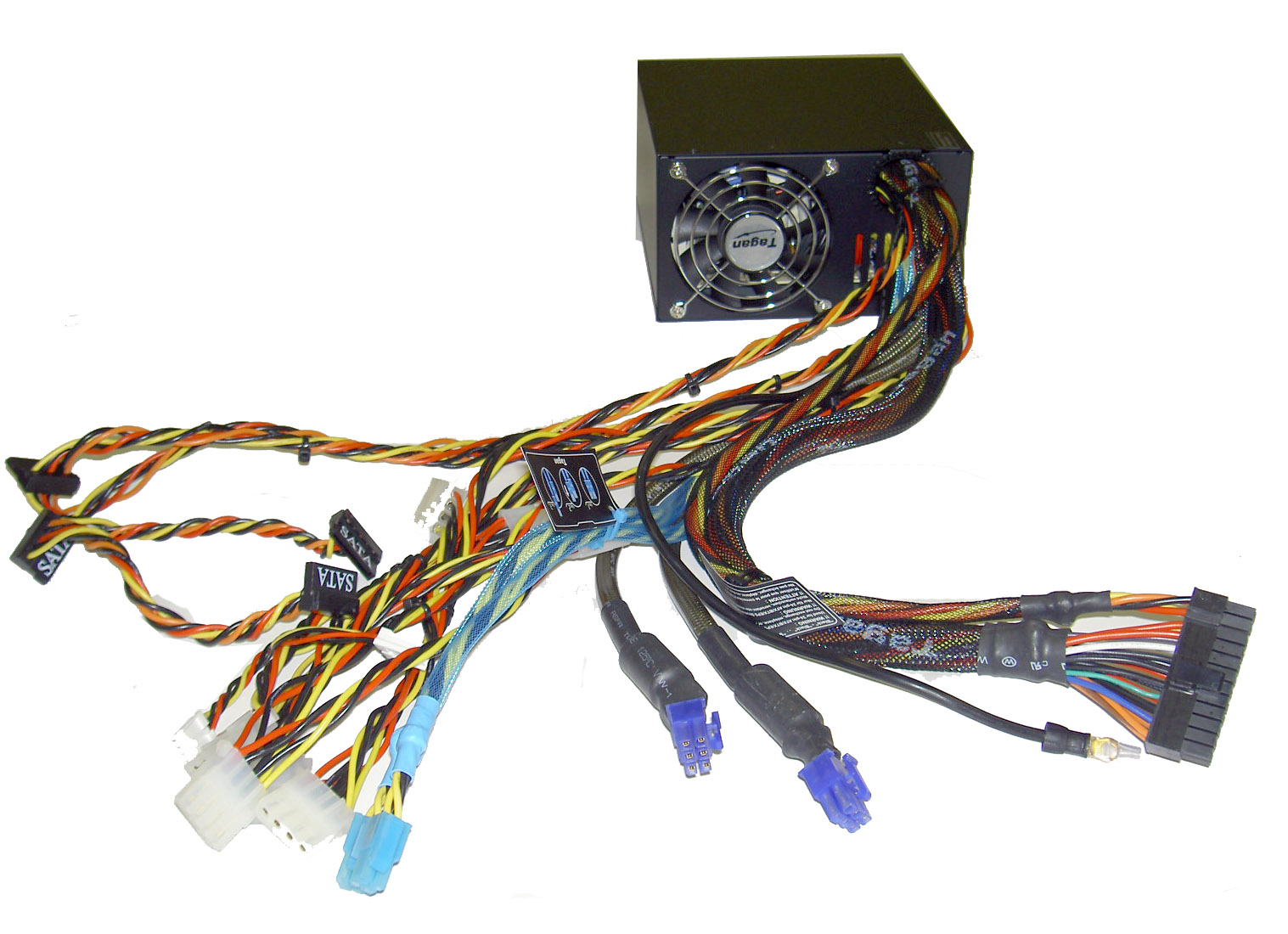

components. The TG-480-U01 provides the innovative transformable
main board connectors for universal use. The V12 rail fits the ATX 12V
2.01 standard and can
provide up to 30A current output. In addition the TG-480 has two 6
pin EMI filtered VGA lead for SLI graphic cards. Along with grounding
wire protection, over current protection, over voltage
protection, over loading protection and Tagan silent control
technology the TG-480 is the best pick for high end gaming and
performance PC. |
|
Features
|
|
2 EMI filter added PCI
express VGA card power lead for SLI video functions |
|
Compatible with P4, AMD,
Dual Xeon EPS 12V boards |
|
4 Serial ATA lead
|
|
Tagan
Silent Control Technology (TSCT) 22dBA at 60%% load |
|

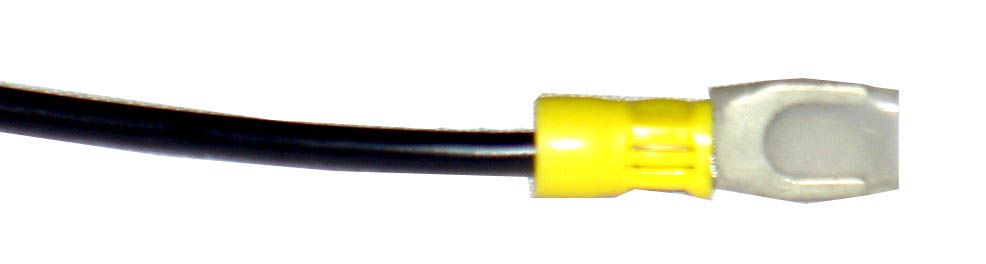

Special Grounding Wire |
|

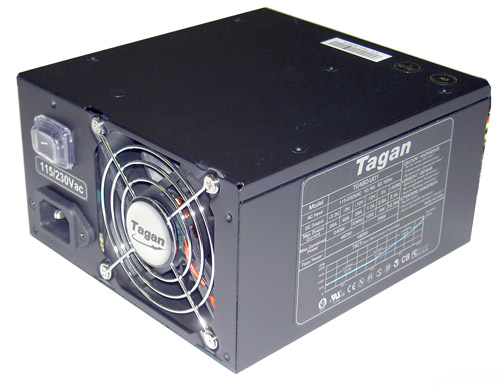

Push & Pull Dual Fan Design for High Thermal Solution |
|
Combine
12V/30A provide power for more peripheral devices |
|
Short Circuit Protection,
Short Circuit Protection |
|
Over Voltage Protection,
Over Current Protection |
|
UL, CE, CB, FCC
certified
|
|
100%
HI-POT tested |
|
Specification |
|
Model |
TG-480-U01 (ATX12V
Version 2.01) |
|
AC Input |
115-230Vac |
|
Current (AMP)
|
10/6A |
|
Frequency (Hz)
|
60/50Hz |
|
DC Output |
+3.3V |
+5V |
+12V |
-12V |
-5V |
+5VSB |
|
Max Output Current |
28A |
48A |
28A |
1.0A |
0.8A |
2.5A |
|
Combined Wattage |
240W |
336W |
12W |
4W |
12.5W |
|
460W
|
28W |
|
Total Wattage |
480W |
|
|
|
|
|
