Xscale High Wattage

Reviews

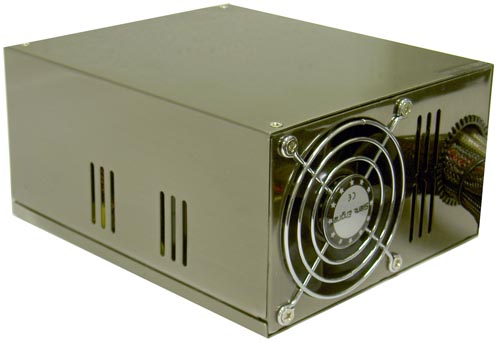

Everything a serious hardware enthusiast or hardcore gamer could ever want is available in the ePower Technology EP-1200P10 xScale 1200W PSU. The best part is probably the price, since the bulk of 1000W units are selling for the same as this 1200W unit.

The voltage regulation is fantastic, the efficiency is very good for a unit that puts out this much power, it's fairly quiet (quieter than any of the other 80MM cooled > 750W units I've reviewed) and the ripple and noise are well within specifications all of the way up to 1000W.
Features
Sliding Socket

Patented ATX 20+4 slide-in socket for PCIe, Intel Pentium 4,  multi-processor server, AMD server and DUAL CORE main boards power need.
SATA to Molex connector

Easily convert SATA connector to 4pin Molex to fit different hard drive need.
SATA Power Lead



12 Serial ATA power lead for SATA devices
 +12V Combine

Manual select +12V combine to give up to 84A or separate to give 6 independent 12V rails
6+2 PCIexpress connector

Patent pending 6+2 PCIe pin. This innovative design prepare for the next generation PCIexpress Video cards. Providing up to 300W power per rail.
Technical Specification

Chassis

Black Titanium

Number of Fans

2x80mm

PFC

Active PFC

M/B Connecter

20 pins + 4 pins  ATX

EPS  12V 8pin (4x2) connector

 1

EPS  12V 4pin (2x2) connector

 1

SATA connector

12

PCIE connector (6+2) Pin

2

PCIE connector 6 pin

4

HDD Molex

6

FDD

2

Protection

OVP, OCP and short Circuit Protection

Certification

UL, CE, CB, FCC, RoHs

Special features I

Molex to SATA converter 4pc

Special features II

+12V V1 to 6 manual combine

Technical Specification

Model: EP-1000P10

AC Input

100-120Vac/200-240Vac

Current

10/6A

Frequency

60/50Hz

DC Output

+3.3V

+5V

+12V1

+12V2

+12V3

+12V4

+12V5

+12V6

-12V

+5VSB

Max Output Current

28A

28A

20A

20A

20A

20A

20A

20A

0.8A

6.5A

Min Output Current

0.3A

0.3A

0.5A

0.5A

0.5A

0.5A

0.5A

0.5A

0.1A

0.1A

Combined Wattage

180W

900W(75A)

9.6W

17.5W

Total Wattage

1000W

Model: EP-1200P10

AC Input

100-120Vac/200-240Vac

Current

10/6A

Frequency

60/50Hz

DC Output

+3.3V

+5V

+12V1

+12V2

+12V3

+12V4

+12V5

+12V6

-12V

+5VSB

Max Output Current

30A

30A

20A

20A

20A

20A

20A

20A

0.8A

6.0A

Min Output Current

0.3A

0.3A

0.5A

0.5A

0.5A

0.5A

0.5A

0.5A

0.1A

0.1A

Combined Wattage

200W

1008W(84A)

9.6W

30W

Total Wattage

1200W

@

Dimensions

5.8"x 3.5"x 6.825" (W x H x D)

150mm X 86mm  X 175mm

Weight

9lb

Review

@

Final Score: 9.0 out of 10. see details
